Series

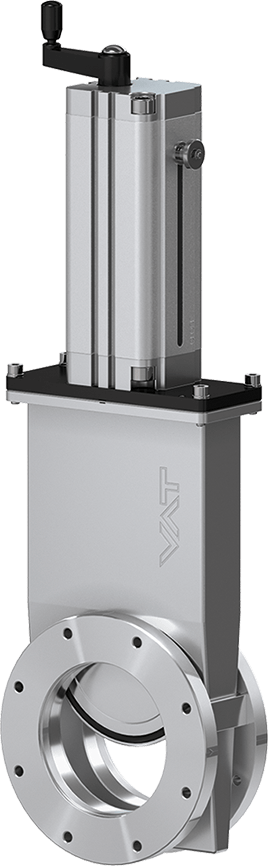

09.1 HV Gate Valve with Wedge Design

  • 09136-CE01
View dimensions

Series

09.1 HV Gate Valve with Wedge Design

Article number
09136-CE01
1 × 10-8 mbar to 1.2 bar (abs)

The flexible Solution for Isolation of Gas-Streams with High By-Product Content

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-9 mbar
Pressure Max.
1.2 bar (abs)
Conductance
400 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 100 °C
Weight
6.4 kg / 14.11 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Temperature Management

09.1 HV Gate Valve with Wedge Design 09136-CE01 3D CAD File

ZIP 280 KB Download

09.1 HV Gate Valve with Wedge Design 09136-CE01 Product Datasheet

PDF 158 KB Download

09.1 HV Gate Valve with Wedge Design 09136-CE01 Manual

PDF 671 KB Download

09.1 HV Gate Valve with Wedge Design 09136-CE01 2D Dimension Drawing

PDF 276 KB Download
