Series

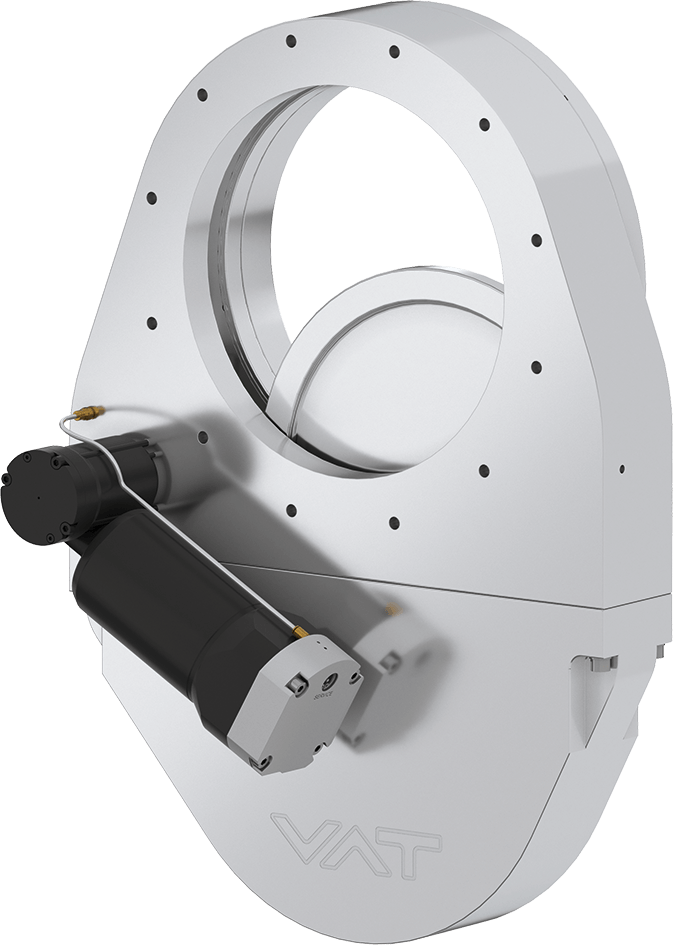

16.2 HV Pendulum Isolation Valve

  • 16255-JA21
View dimensions

Series

16.2 HV Pendulum Isolation Valve

Article number
16255-JA21
1 × 10-8 mbar to 1.2 bar (abs)

The Standard for Isolation Requirements in Evaporator and Sputter Applications

  • Technical data
  • Downloads
Size
DN 550 (22")
Flange
JIS
Material
Aluminum
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
100 000 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 0.005 bar
Min. compressed air pressure
5 bar / 73 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
0.35 l
Close open time
14 s
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 80 °C
Max. temperature position indicator
≤ 80 °C
Weight
119 kg / 261 lbs

16.2 HV Pendulum Isolation Valve 16255-JA21 3D CAD File

ZIP 1 MB Download

16.2 HV Pendulum Isolation Valve 16255-JA21 2D Dimension Drawing

PDF 663 KB Download

16.2 HV Pendulum Isolation Valve 16255-JA21 Manual

PDF 478 KB Download

16.2 HV Pendulum Isolation Valve 16255-JA21 Product Datasheet

PDF 194 KB Download
