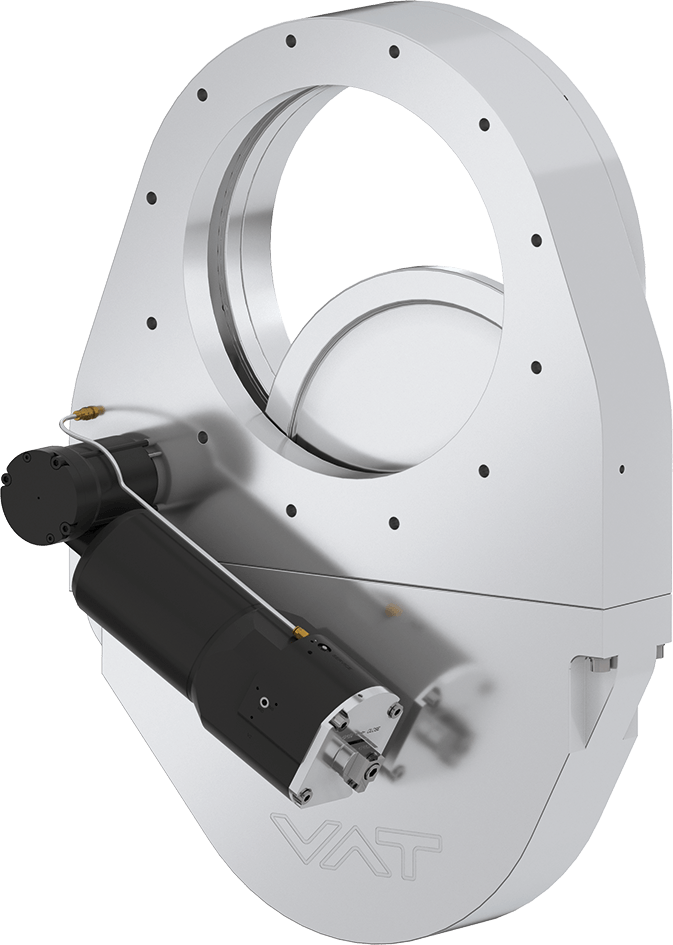

16.2 HV Pendulum Isolation Valve

  • 16252-PA48
View dimensions

Series

16.2 HV Pendulum Isolation Valve

Article number
16252-PA48
1 × 10-8 mbar to 1.2 bar (abs)

The Standard for Isolation Requirements in Evaporator and Sputter Applications

  • Technical data
  • Downloads
Size
DN 400 (16")
Flange
ISO-F
Material
Aluminum
Actuator
3-position pneumatic with closing spring (NC)
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
61000 ls⁻¹
Conductance DO NOT USE
69
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 0.005 bar
Min. compressed air pressure
5 bar / 73 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
0.85 l
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 80 °C
Max. temperature position indicator
≤ 80 °C
Max. temperature solenoid
≤ 50 °C
Weight
76 kg / 167.6 lbs

16.2 HV Pendulum Isolation Valve 16252-PA48 3D CAD File

ZIP 2 MB Download

16.2 HV Pendulum Isolation Valve 16252-PA48 Product Datasheet

PDF 182 KB Download

16.2 HV Pendulum Isolation Valve 16252-PA48 Manual

PDF 476 KB Download

16.2 HV Pendulum Isolation Valve 16252-PA48 2D Dimension Drawing

PDF 494 KB Download
