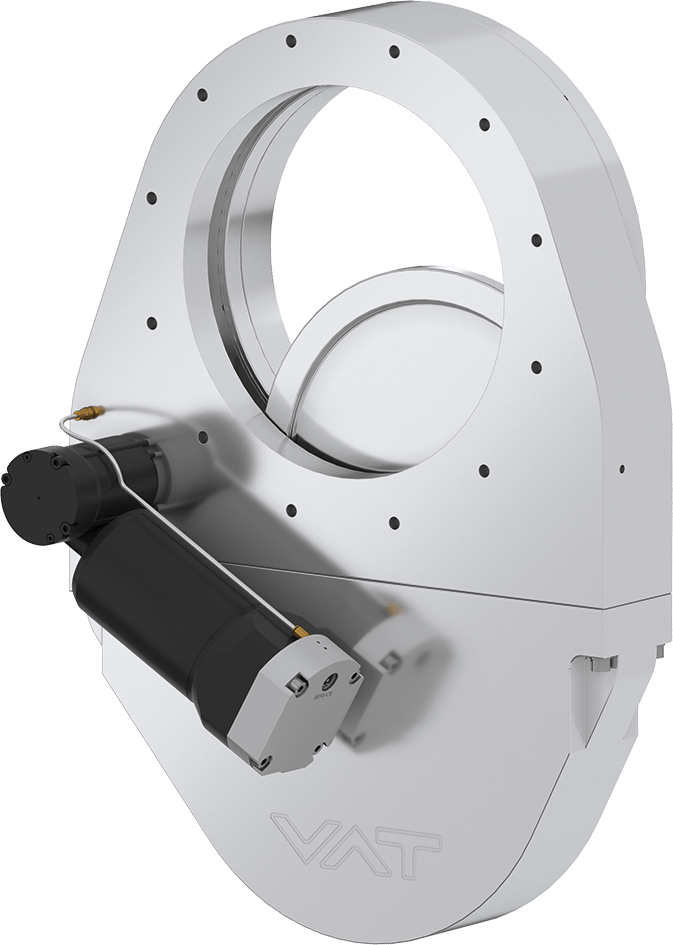

16.2 HV Pendulum Isolation Valve

View dimensions

Series

16.2 HV Pendulum Isolation Valve

Article number

16250-JA41

1 × 10^-8 mbar to 1.2 bar (abs)

The Standard for Isolation Requirements in Evaporator and Sputter Applications

Technical data
Downloads

Size

DN 320 (12")

Flange

JIS

Material

Aluminum

Actuator

Pneumatic, single acting with closing spring (NC)

Position Indication Signal

Yes

Solenoid

Yes

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

1.2 bar (abs)

Conductance

32600 ls⁻¹

Differential Pressure on Plate

≤ 1.2 bar

Differential Pressure at opening

≤ 0.005 bar

Min. compressed air pressure

5 bar / 73 psi

Max. compressed air pressure

7 bar / 102 psi

Cylinder volume

0.55 l

Close open time

5 s

Max. temperature valve body

≤ 120 °C

Max. Temperature Actuator

≤ 80 °C

Max. temperature position indicator

≤ 80 °C

Max. temperature solenoid

≤ 50 °C

Weight

55 kg / 121.25 lbs
