Series

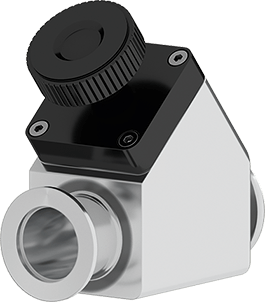

26.5 HV Inline Valve

  • 26534-KA01
View dimensions

Series

26.5 HV Inline Valve

Article number
26534-KA01
1 × 10-8 mbar to 5 bar (abs)

Uncompromised Reliability

  • Technical data
  • Downloads
Size
DN 50 (2")
Flange
ISO-KF
Material
Aluminum
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
5.0 bar (abs)
Conductance
80 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Weight
2.3 kg / 5.07 lbs

26.5 HV Inline Valve 26534-KA01 3D CAD File

ZIP 381 KB Download

26.5 HV Inline Valve 26534-KA01 Product Datasheet

PDF 16 KB Download

26.5 HV Inline Valve 26534-KA01 Manual

PDF 481 KB Download

26.5 HV Inline Valve 26534-KA01 2D Dimension Drawing

PDF 240 KB Download
