Series

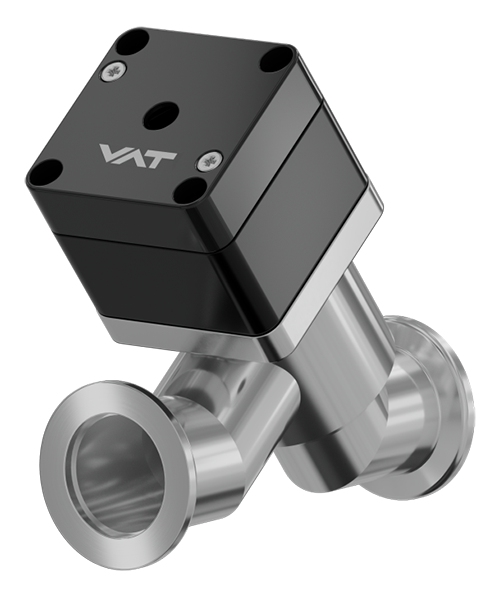

26.5 HV Inline Valve

View dimensions

Series

26.5 HV Inline Valve

Article number

26532-KE32

1 × 10^-8 mbar to 5 bar (abs)

Uncompromised Reliability

Technical data
Downloads

Size

DN 40 (1 ½")

Flange

ISO-KF

Material

Stainless steel

Actuator

Pneumatic: single acting with opening spring (NO)

Position Indication Signal

Solenoid

Yes

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

5.0 bar (abs)

Conductance

45 ls⁻¹

Differential Pressure on Plate

≤ 5 bar

Differential Pressure at opening

≤ 1 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

8 bar / 116 psi

Cylinder volume

0.035 l

Close open time

0.55 s

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 120 °C

Max. temperature solenoid

≤ 80 °C

Weight

1.4 kg / 3.09 lbs

Scroll to:

Sealing Kit vacuum 21.6, 26.4, 26.5, 91.5 DN40 (single-acting) ID: 241079

Sealing Kit pneumatic 24.4, 24.5, 26.4, 26.5 DN40 (single-acting, opening) ID: 255954
