Series

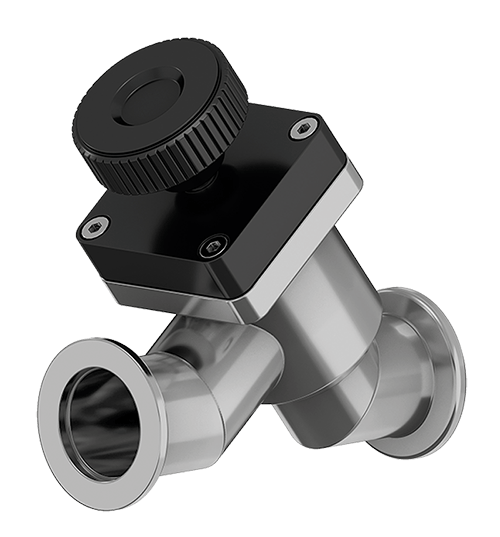

26.5 HV Inline Valve

  • 26532-KE01
View dimensions

Series

26.5 HV Inline Valve

Article number
26532-KE01
1 × 10-8 mbar to 5 bar (abs)

Uncompromised Reliability

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
ISO-KF
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
5.0 bar (abs)
Conductance
45 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Weight
1.1 kg / 2.43 lbs

26.5 HV Inline Valve 26532-KE01 3D CAD File

ZIP 144 KB Download

26.5 HV Inline Valve 26532-KE01 Product Datasheet

PDF 16 KB Download

26.5 HV Inline Valve 26532-KE01 Manual

PDF 481 KB Download

26.5 HV Inline Valve 26532-KE01 2D Dimension Drawing

PDF 237 KB Download
