Series

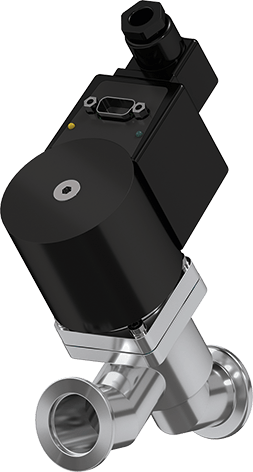

26.5 HV Inline Valve

  • 26528-KA61
View dimensions

Series

26.5 HV Inline Valve

Article number
26528-KA61
1 × 10-8 mbar to 5 bar (abs)

Uncompromised Reliability

  • Technical data
  • Downloads
Size
DN 25 (1")
Flange
ISO-KF
Material
Aluminum
Actuator
Electromagnetic: single acting with closing spring (NC)
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
2.0 bar (abs)
Conductance
14 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 1 bar
Close open time
0.20 s
Max. temperature valve body
≤ 50 °C
Max. Temperature Actuator
≤ 50 °C
Weight
1.5 kg / 3.31 lbs

26.5 HV Inline Valve 26528-KA61 3D CAD File

ZIP 287 KB Download

26.5 HV Inline Valve 26528-KA61 Manual

PDF 634 KB Download

26.5 HV Inline Valve 26528-KA61 2D Dimension Drawing

PDF 185 KB Download
