Series

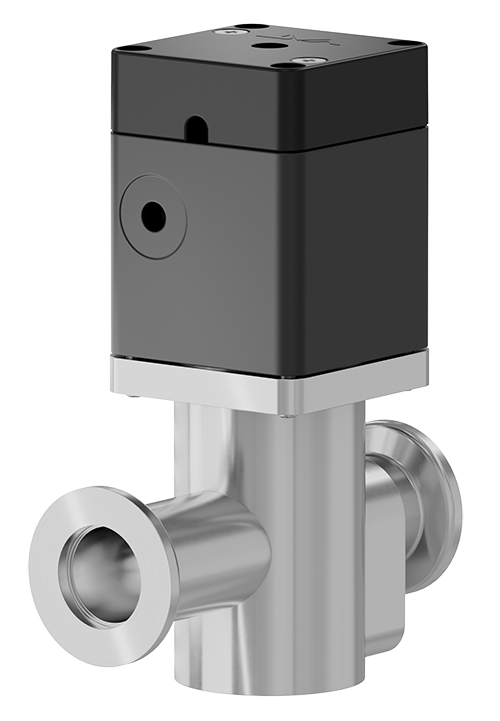

26.5 HV Inline Valve

  • 26524-KE12
View dimensions

Series

26.5 HV Inline Valve

Article number
26524-KE12
1 × 10-8 mbar to 5 bar (abs)

Uncompromised Reliability

  • Technical data
  • Downloads
Size
DN 16 (⅝")
Flange
ISO-KF
Material
Stainless steel
Actuator
Pneumatic: single acting with opening spring (NO)
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
5.0 bar (abs)
Conductance
5 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.004 l
Close open time
0.1 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Weight
0.5 kg / 1.1 lbs

26.5 HV Inline Valve 26524-KE12 3D CAD File

ZIP 139 KB Download

26.5 HV Inline Valve 26524-KE12 Product Datasheet

PDF 19 KB Download

26.5 HV Inline Valve 26524-KE12 Manual

PDF 1 MB Download

26.5 HV Inline Valve 26524-KE12 2D Dimension Drawing

PDF 145 KB Download
