Series

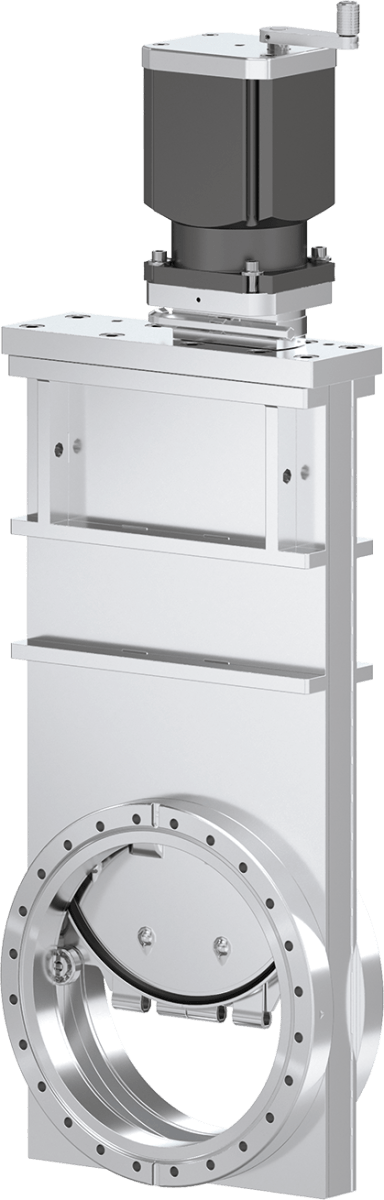

11.1 HV Gate Valve

  • 11146-UE01

Series

11.1 HV Gate Valve

Article number
11146-UE01
1 × 10-8 mbar to 1.6 bar (abs)

The Standard for High Vacuum Isolation

  • Technical data
  • Downloads
Size
DN 200 (8")
Flange
CF-F
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.6 bar (abs)
Differential Pressure on Plate
≤ 1.6 bar
Differential Pressure at opening
≤ 0.03 bar
Conductance
12 200 ls-1
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
7 bar / 102 psi
Close open time
2 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 150 °C
Weight
29 kg / 64 lbs

11.1 HV Gate Valve 11146-UE01 3D CAD File

ZIP 775 KB Download

11.1 HV Gate Valve 11146-UE01 2D Dimension Drawing

PDF 232 KB Download

11.1 HV Gate Valve 11146-UE01 Manual

PDF 884 KB Download

11.1 HV Gate Valve 11146-UE01 Product Datasheet

PDF 88 KB Download
