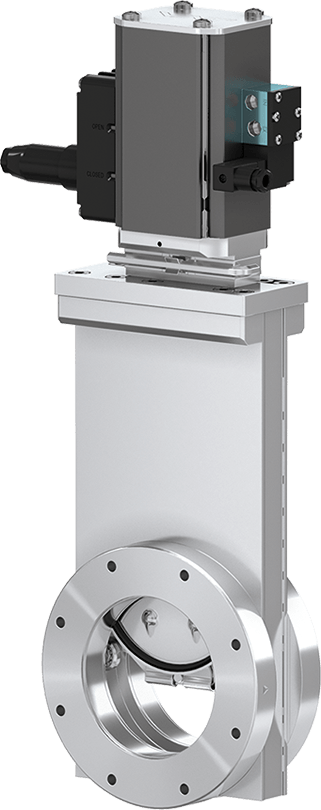

11.1 HV Gate Valve

  • 11140-PE24

Series

11.1 HV Gate Valve

Article number
11140-PE24
1 × 10-8 mbar to 1.6 bar (abs)

The Standard for High Vacuum Isolation

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
ISO-F
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.6 bar (abs)
Differential Pressure on Plate
≤ 1.6 bar
Differential Pressure at opening
≤ 0.03 bar
Conductance
1740 ls⁻¹
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
7 bar / 102 psi
Close open time
1.2 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature position indicator
≤ 80 °C
Weight
13 kg / 28 lbs

11.1 HV Gate Valve 11140-PE24 3D CAD File

ZIP 1 MB Download

11.1 HV Gate Valve 11140-PE24 2D Dimension Drawing

PDF 216 KB Download

11.1 HV Gate Valve 11140-PE24 Manual

PDF 1 MB Download

11.1 HV Gate Valve 11140-PE24 Product Datasheet

PDF 128 KB Download
