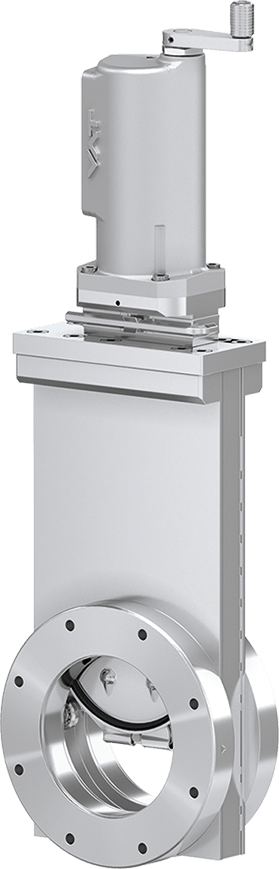

11.1 HV Gate Valve

  • 11140-PE01

Series

11.1 HV Gate Valve

Article number
11140-PE01
1 × 10-8 mbar to 1.6 bar (abs)

The Standard for High Vacuum Isolation

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
ISO-F
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.6 bar (abs)
Differential Pressure on Plate
≤ 1.6 bar
Differential Pressure at opening
≤ 0.03 bar
Conductance
1740 ls⁻¹
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
7 bar / 102 psi
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 150 °C
Weight
12 kg / 28 lbs

11.1 HV Gate Valve 11140-PE01 3D CAD File

ZIP 385 KB Download

11.1 HV Gate Valve 11140-PE01 2D Dimension Drawing

PDF 201 KB Download

11.1 HV Gate Valve 11140-PE01 Manual

PDF 884 KB Download

11.1 HV Gate Valve 11140-PE01 Product Datasheet

PDF 77 KB Download
