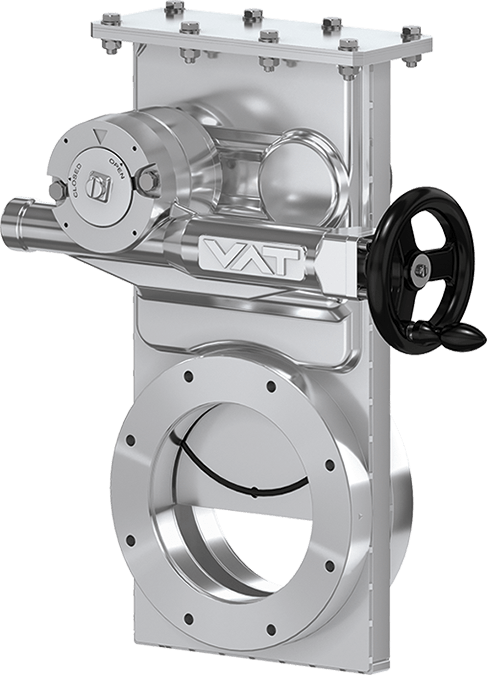

14.0 HV Gate Valve

  • 14052-PE01
View dimensions

Series

14.0 HV Gate Valve

Article number
14052-PE01

For Standard High Cycle Vacuum Isolation

  • Technical data
  • Downloads
Size
DN 400 (16")
Flange
ISO-F
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
50000 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 0.03 bar
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 80 °C
Weight
155 kg / 341.71 lbs
