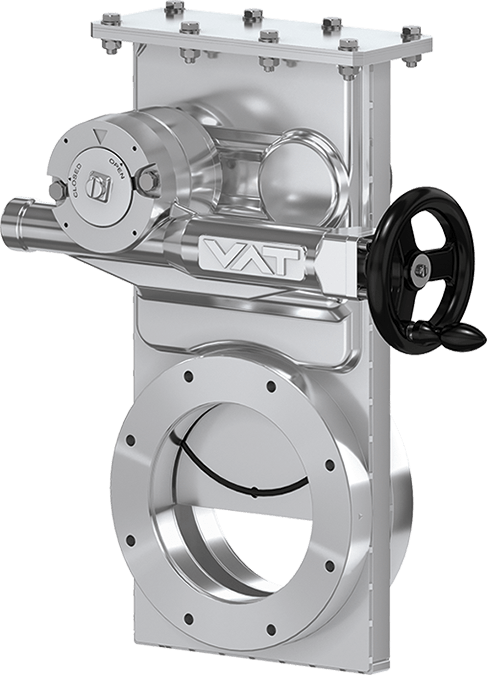

HV Gate Valve - VAT Valves

Size

DN 320 (12")

Flange

ISO-F

Material

Stainless steel

Actuator

Manual

Position Indication Signal

Solenoid

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

1.2 bar (abs)

Conductance

32’690 ls-1

Differential Pressure on Plate

≤ 1.2 bar

Differential Pressure at opening

≤ 0.03 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

7 bar / 102 psi

Cylinder volume

0.75 l

Close open time

6 s

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 80 °C

Weight

95 kg / 209.44 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Direct mounting option

Additional ports

Intermediate pump port

Gate

Alternative sealing materials

Actuator

Different mounting positons defineable

Different solenoid specification

Position indicator

Double position indicator for "open" and "close"

Temperature Management

Heating and cooling options on request

Temperature control with thermostat

Series

14.0 HV Gate Valve

Series

14.0 HV Gate Valve

Add-Ons for Your Product

Valve

Gate

Actuator

Position indicator

Temperature Management

14.0 HV Gate Valve 14050-PE06 3D CAD File

14.0 HV Gate Valve 14050-PE06 2D Dimension Drawing

14.0 HV Gate Valve 14050-PE06 Manual

14.0 HV Gate Valve 14050-PE06 Product Datasheet
