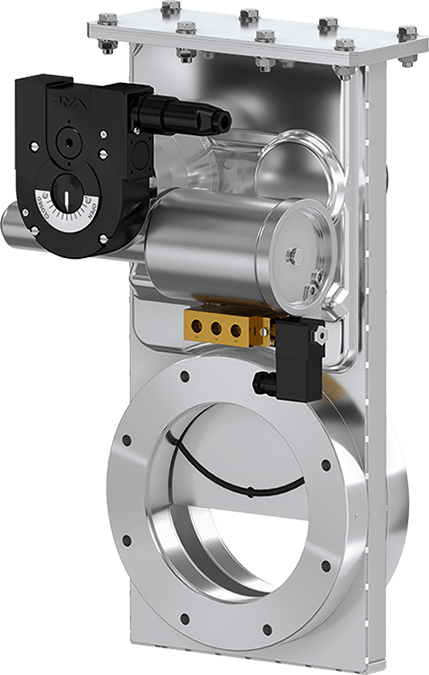

HV Gate Valve - VAT Valves

Size

DN 200 (8")

Flange

CF-C (UNF threads)

Material

Stainless steel

Actuator

Pneumatic: double acting

Position Indication Signal

Yes

Solenoid

Yes

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

2.0 bar (abs)

Conductance

12000 ls⁻¹

Differential Pressure on Plate

≤ 2 bar

Differential Pressure at opening

≤ 0.03 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

7 bar / 102 psi

Cylinder volume

0.27 l

Close open time

2.5 s

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 50 °C

Max. temperature position indicator

≤ 80 °C

Weight

33 kg / 72.75 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Direct mounting option

Additional ports

Intermediate pump port

Gate

Alternative sealing materials

Actuator

Different mounting positons defineable

Different solenoid specification

Position indicator

Double position indicator for "open" and "close"

Temperature Management

Heating and cooling options on request

Temperature control with thermostat

Series

14.0 HV Gate Valve

Series

14.0 HV Gate Valve

Add-Ons for Your Product

Valve

Gate

Actuator

Position indicator

Temperature Management

14.0 HV Gate Valve 14046-UE44 Product Datasheet

14.0 HV Gate Valve 14046-UE44 3D CAD File

14.0 HV Gate Valve 14046-UE44 Manual

14.0 HV Gate Valve 14046-UE44 2D Dimension Drawing
