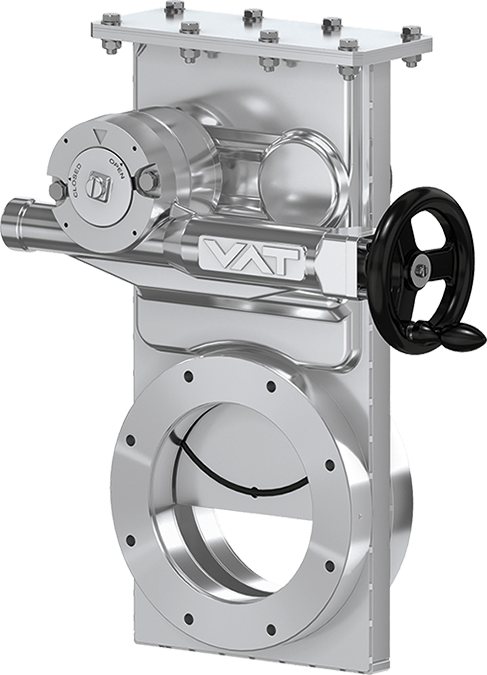

14.0 HV Gate Valve

  • 14046-CE01
View dimensions

Series

14.0 HV Gate Valve

Article number
14046-CE01

For Standard High Cycle Vacuum Isolation

  • Technical data
  • Downloads
Size
DN 200 (8")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
2.0 bar (abs)
Conductance
12000 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 0.03 bar
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 80 °C
Weight
32 kg / 70.55 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Temperature Management
Position indicator

14.0 HV Gate Valve 14046-CE01 Product Datasheet

PDF 20 KB Download

14.0 HV Gate Valve 14046-CE01 3D CAD File

ZIP 728 KB Download

14.0 HV Gate Valve 14046-CE01 Manual

PDF 1 MB Download

14.0 HV Gate Valve 14046-CE01 2D Dimension Drawing

PDF 370 KB Download
