Series

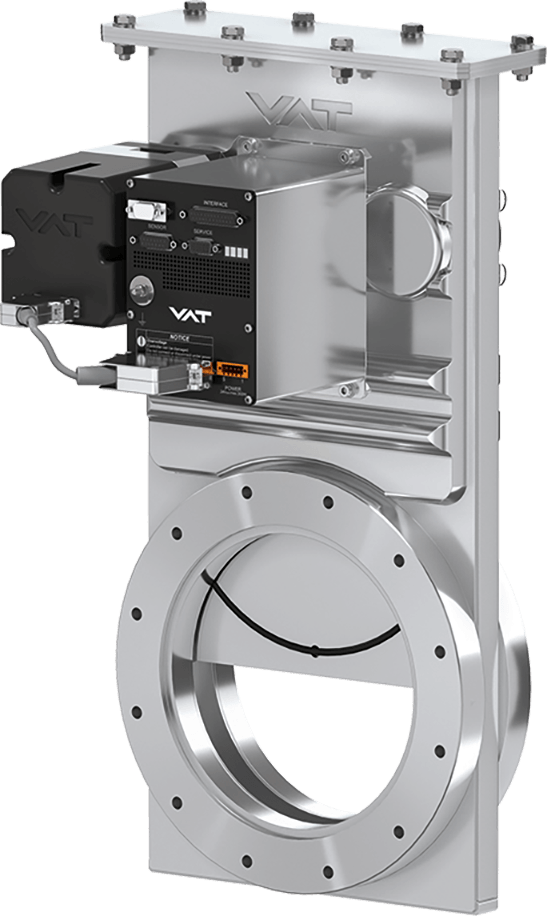

64.2 HV Control Gate Valve

  • 64250-PEWH
View dimensions

Series

64.2 HV Control Gate Valve

Article number
64250-PEWH
DN 100 - 400

For High Cycle Vacuum Control and Isolation

  • Technical data
  • Downloads
Size
DN 320 (12")
Flange
ISO-F
Material
Stainless steel
Actuator
Stepper motor
Position Indication Signal
No
Solenoid
No
Controller
with SPS, PFO and VC master
Interface
RS232, 2 Sensors
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
30000 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 0.03 bar
Open to close
10 s
Close to open
10 s
Pressure control (throttling) default speed
9 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 50 °C
Weight
112 kg / 246.92 lbs
Controller Configuration
SPS, PFO and VC master
Controller interface + sensors
RS232 interface / 2 sensors
