Series

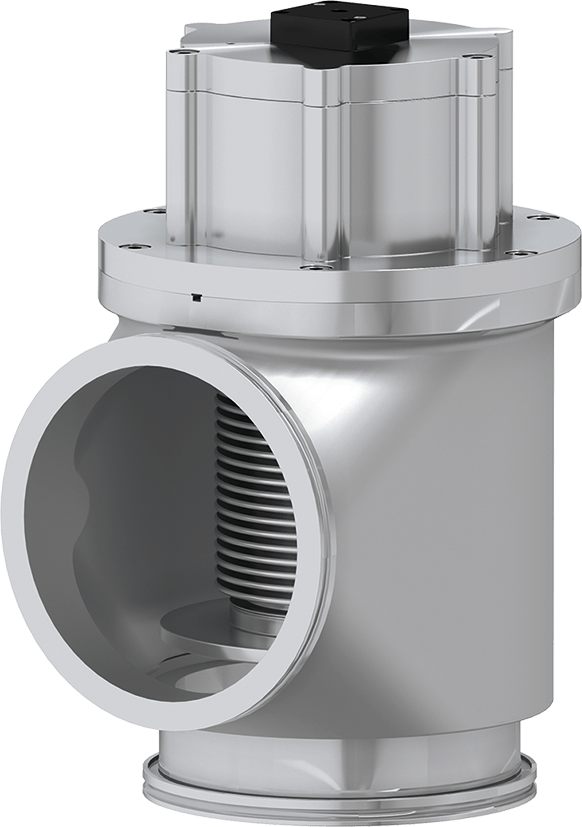

26.4 HV Angle Valve

  • 26444-QE31
View dimensions

Series

26.4 HV Angle Valve

Article number
26444-QE31
1 × 10-8 mbar to 2 bar (abs)

Uncompromised Flexibility and Reliability

  • Technical data
  • Downloads
Size
DN 160 (6")
Flange
ISO-K
Material
Stainless steel
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
No
Solenoid
Yes
Pressure Min.
1 × 10-8 mbar
Pressure Max.
2.0 bar (abs)
Conductance
1000 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4.5 bar / 65 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
0.65 l
Close open time
≤ 1.5 sec
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature solenoid
≤ 50 °C
Weight
14 kg / 30.86 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

26.4 HV Angle Valve 26444-QE31 3D CAD File

ZIP 396 KB Download

26.4 HV Angle Valve 26444-QE31 2D Dimension Drawing

PDF 297 KB Download

26.4 HV Angle Valve 26444-QE31 Manual

PDF 2 MB Download

26.4 HV Angle Valve 26444-QE31 Product Datasheet

PDF 29 KB Download
