Series

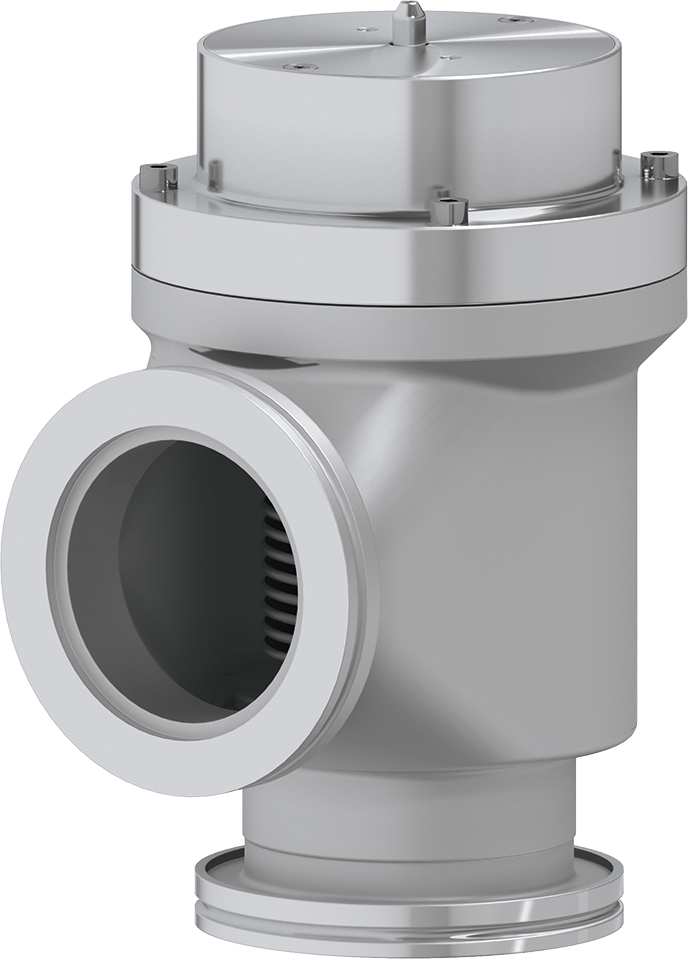

26.4 HV Angle Valve

  • 26440-QE21
View dimensions

Series

26.4 HV Angle Valve

Article number
26440-QE21
1 × 10-8 mbar to 2 bar (abs)

Uncompromised Flexibility and Reliability

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
ISO-K
Material
Stainless steel
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
2.0 bar (abs)
Conductance
440 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4.5 bar / 65 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
0.33 l
Close open time
1 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature position indicator
≤ 80 °C
Weight
10 kg / 22.05 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

26.4 HV Angle Valve 26440-QE21 3D CAD File

ZIP 190 KB Download

26.4 HV Angle Valve 26440-QE21 2D Dimension Drawing

PDF 208 KB Download

26.4 HV Angle Valve 26440-QE21 Manual

PDF 2 MB Download

26.4 HV Angle Valve 26440-QE21 Product Datasheet

PDF 25 KB Download
