Series

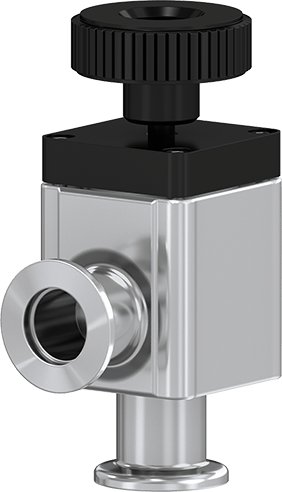

26.4 HV Angle Valve

  • 26440-QE01
View dimensions

Series

26.4 HV Angle Valve

Article number
26440-QE01
1 × 10-8 mbar to 2 bar (abs)

Uncompromised Flexibility and Reliability

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
ISO-K
Material
Aluminum
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
2.0 bar (abs)
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 1 bar
Conductance
440 ls⁻¹
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 80 °C
Weight
6.5 kg / 14.33 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

26.4 HV Angle Valve 26440-QE01 2D Dimension Drawing

PDF 156 KB Download

26.4 HV Angle Valve 26440-QE01 Manual

PDF 753 KB Download

26.4 HV Angle Valve 26440-QE01 Product Datasheet

PDF 20 KB Download

26.4 HV Angle Valve 26440-QE01 3D CAD File

ZIP 92 KB Download
