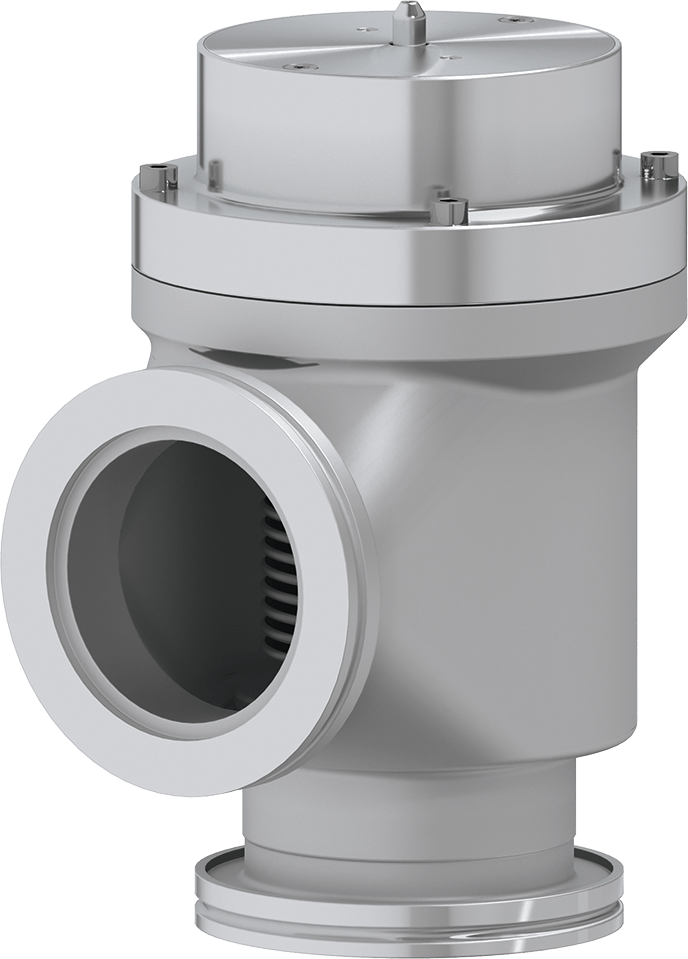

26.4 HV Angle Valve

  • 26436-QE11
View dimensions

Series

26.4 HV Angle Valve

Article number
26436-QE11
1 × 10-8 mbar to 2 bar (abs)

Uncompromised Flexibility and Reliability

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
ISO-K
Material
Stainless steel
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
4.0 bar (abs)
Conductance
160 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.112 l
Close open time
0.7 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Weight
1.7 kg / 3.75 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

26.4 HV Angle Valve 26436-QE11 3D CAD File

ZIP 82 KB Download

26.4 HV Angle Valve 26436-QE11 Product Datasheet

PDF 26 KB Download

26.4 HV Angle Valve 26436-QE11 Manual

PDF 776 KB Download

26.4 HV Angle Valve 26436-QE11 2D Dimension Drawing

PDF 195 KB Download
