Series

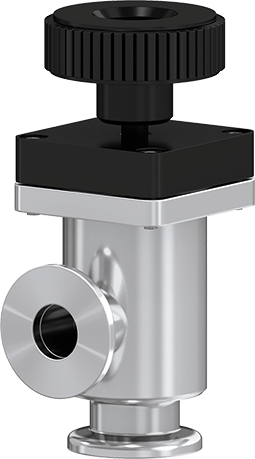

26.4 HV Angle Valve

  • 26436-QE01
View dimensions

Series

26.4 HV Angle Valve

Article number
26436-QE01
1 × 10-8 mbar to 2 bar (abs)

Uncompromised Flexibility and Reliability

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
ISO-K
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
4.0 bar (abs)
Conductance
160 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Weight
2.7 kg / 5.95 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

26.4 HV Angle Valve 26436-QE01 3D CAD File

ZIP 159 KB Download

26.4 HV Angle Valve 26436-QE01 Product Datasheet

PDF 16 KB Download

26.4 HV Angle Valve 26436-QE01 Manual

PDF 521 KB Download

26.4 HV Angle Valve 26436-QE01 2D Dimension Drawing

PDF 211 KB Download
