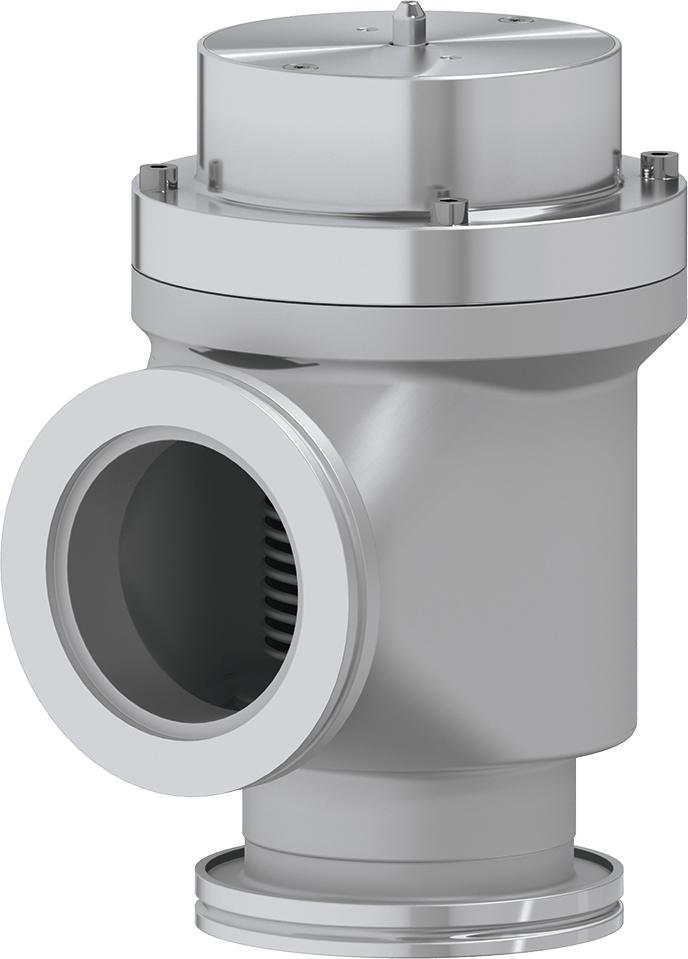

26.4 HV Angle Valve

  • 26436-QA31
View dimensions

Series

26.4 HV Angle Valve

Article number
26436-QA31
1 × 10-8 mbar to 2 bar (abs)

Uncompromised Flexibility and Reliability

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
ISO-K
Material
Aluminum
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
No
Solenoid
Yes
Pressure Min.
1 × 10-8 mbar
Pressure Max.
4.0 bar (abs)
Conductance
160 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.112 l
Close open time
0.7 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature solenoid
≤ 80 °C
Weight
3.9 kg / 8.6 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

26.4 HV Angle Valve 26436-QA31 3D CAD File

ZIP 130 KB Download

26.4 HV Angle Valve 26436-QA31 2D Dimension Drawing

PDF 182 KB Download

26.4 HV Angle Valve 26436-QA31 Product Datasheet

PDF 90 KB Download

26.4 HV Angle Valve 26436-QA31 Manual

PDF 765 KB Download
