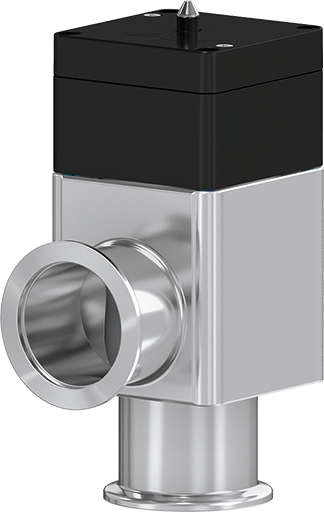

26.4 HV Angle Valve

  • 26432-KA21
View dimensions

Series

26.4 HV Angle Valve

Article number
26432-KA21
1 × 10-8 mbar to 2 bar (abs)

Uncompromised Flexibility and Reliability

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
ISO-KF
Material
Aluminum
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
5.0 bar (abs)
Conductance
45 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.035 l
Close open time
0.55 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature position indicator
≤ 80 °C
Weight
1.1 kg / 2.43 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

26.4 HV Angle Valve 26432-KA21 3D CAD File

ZIP 138 KB Download

26.4 HV Angle Valve 26432-KA21 2D Dimension Drawing

PDF 189 KB Download

26.4 HV Angle Valve 26432-KA21 Product Datasheet

PDF 103 KB Download

26.4 HV Angle Valve 26432-KA21 Manual

PDF 1 MB Download
