Series

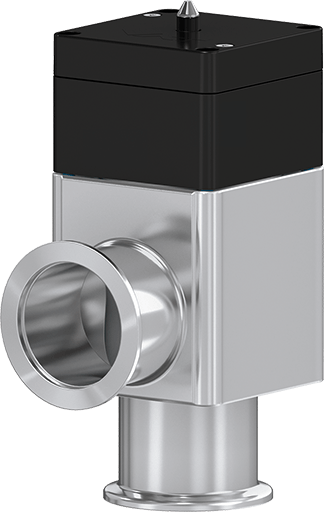

26.4 HV Angle Valve

  • 26428-KA11
View dimensions

Series

26.4 HV Angle Valve

Article number
26428-KA11
1 × 10-8 mbar to 2 bar (abs)

Uncompromised Flexibility and Reliability

  • Technical data
  • Downloads
Size
DN 25 (1")
Flange
ISO-KF
Material
Aluminum
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
5.0 bar (abs)
Conductance
14 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.011 l
Close open time
0.20 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Weight
0.5 kg / 1.1 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

26.4 HV Angle Valve 26428-KA11 3D CAD File

ZIP 267 KB Download

26.4 HV Angle Valve 26428-KA11 Product Datasheet

PDF 26 KB Download

26.4 HV Angle Valve 26428-KA11 Manual

PDF 1 MB Download

26.4 HV Angle Valve 26428-KA11 2D Dimension Drawing

PDF 194 KB Download
