Series

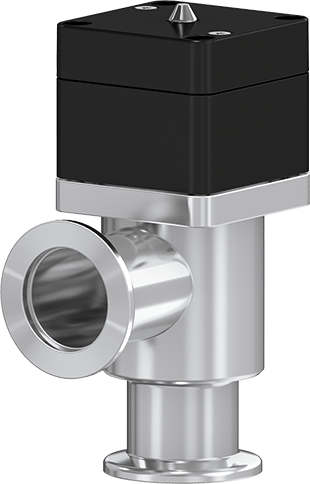

26.4 HV Angle Valve

View dimensions

Series

26.4 HV Angle Valve

Article number

26424-KE42

1 × 10^-8 mbar to 2 bar (abs)

Uncompromised Flexibility and Reliability

Technical data
Downloads

Size

DN 16 (⅝")

Flange

ISO-KF

Material

Stainless steel

Actuator

Pneumatic: single acting with opening spring (NO)

Position Indication Signal

Yes

Solenoid

Yes

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

5.0 bar (abs)

Conductance

5 ls⁻¹

Differential Pressure on Plate

≤ 5 bar

Differential Pressure at opening

≤ 1 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

8 bar / 116 psi

Cylinder volume

0.004 l

Close open time

0.1 s

Max. temperature valve body

≤ 120 °C

Max. Temperature Actuator

≤ 120 °C

Max. temperature position indicator

≤ 80 °C

Max. temperature solenoid

≤ 80 °C

Weight

0.36 kg / 0.79 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Gate

Alternative sealing materials

Actuator

Common connector for position indicator and solenoid

One-touch pneumatic fittings

Different solenoid specification

Position indicator

High temperature position indicator

Scroll to:

Sealing Kit vacuum 21.6, 26.4, 26.5, 91.5 DN16 (single-acting) ID: 242324

Sealing Kit pneumatic 24.4, 24.5, 26.4, 26.5, 28.4 DN10/16 (single-acting, opening) ID: 322768
