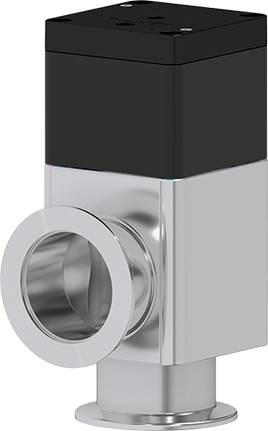

29.0 HV Angle Valve with Soft-Pump Function

View dimensions

Series

29.0 HV Angle Valve with Soft-Pump Function

Article number

29036-QE11

1 × 10^-8 mbar to 1.2 bar (abs)

Pumping, Venting Without Turbulence or Pressure Pulses (DN 25 - 80)

Technical data
Downloads

Size

DN 63 (2 ½")

Flange

ISO-K

Material

Stainless steel

Actuator

Pneumatic, single acting with closing spring (NC)

Position Indication Signal

Solenoid

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

4.0 bar (abs)

Conductance

160 ls⁻¹

Differential Pressure on Plate

≤ 5 bar

Differential Pressure at opening

≤ 1 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

8 bar / 116 psi

Cylinder volume

0.112 l

Close open time

0.7 s

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 120 °C

Weight

6.35 kg / 14 lbs
