Series

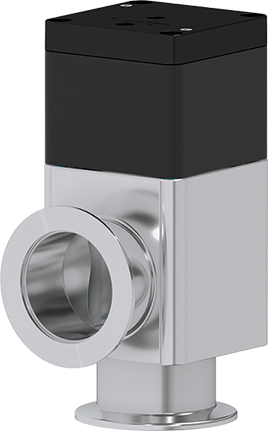

29.0 HV Angle Valve with Soft-Pump Function

View dimensions

Series

29.0 HV Angle Valve with Soft-Pump Function

Article number

29032-KA21

1 × 10^-8 mbar to 1.2 bar (abs)

Pumping, Venting Without Turbulence or Pressure Pulses (DN 25 - 80)

Technical data
Downloads

Size

DN 40 (1 ½")

Flange

ISO-KF

Material

Aluminum

Actuator

Pneumatic, single acting with closing spring (NC)

Position Indication Signal

Yes

Solenoid

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

1.2 bar (abs)

Conductance

45 ls⁻¹

Differential Pressure on Plate

≤ 1.2 bar

Differential Pressure at opening

≤ 1 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

8 bar / 116 psi

Cylinder volume

0.035 l

Close open time

0.5 s

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 120 °C

Max. temperature position indicator

≤ 80 °C

Weight

1.25 kg / 2.75lbs

Add-Ons for Your Product

Valve

Customer specific flange

Gate

Alternative sealing materials

Actuator

Common connector for position indicator and solenoid

Different solenoid specification

Position indicator

High temperature position indicator
