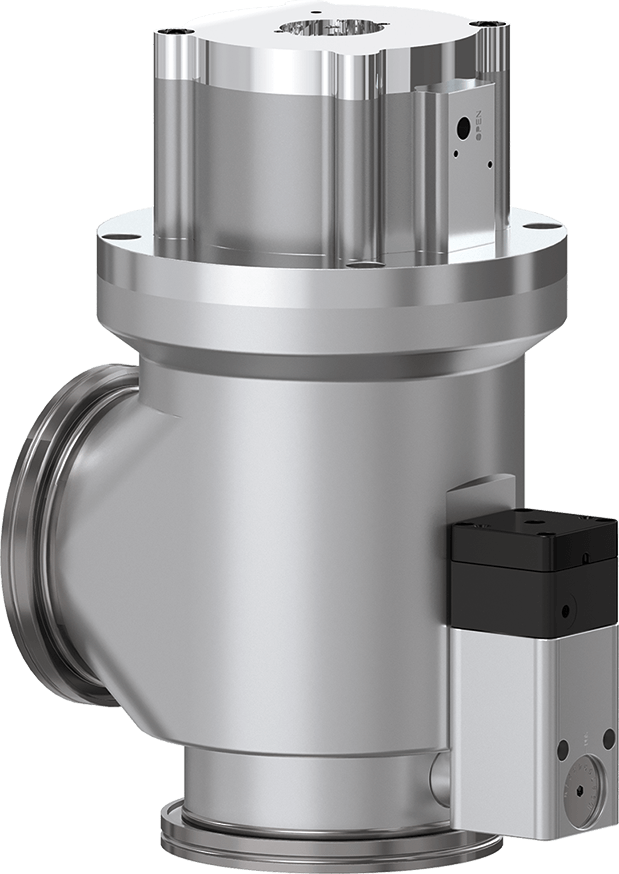

29.2 HV Angle Valve with Soft-Pump Function

  • 29240-QE24
View dimensions

Series

29.2 HV Angle Valve with Soft-Pump Function

Article number
29240-QE24
1 × 10-7 mbar to 2 bar (abs)

Avoids Turbulence or Condensation, Large Conductance Spectrum (DN 100 - 160)

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
ISO-K
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
2.0 bar (abs)
Conductance
440 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 0.3 bar
Min. compressed air pressure
4.5 bar / 65 psi
Max. compressed air pressure
12 bar / 174 psi
Cylinder volume
0.33 l
Close open time
1 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature position indicator
≤ 80 °C
Weight
10.5 kg / 23.15 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

29.2 HV Angle Valve with Soft-Pump Function 29240-QE24 3D CAD File

ZIP 417 KB Download

29.2 HV Angle Valve with Soft-Pump Function 29240-QE24 Product Datasheet

PDF 93 KB Download

29.2 HV Angle Valve with Soft-Pump Function 29240-QE24 Manual

PDF 2 MB Download

29.2 HV Angle Valve with Soft-Pump Function 29240-QE24 2D Dimension Drawing

PDF 291 KB Download
