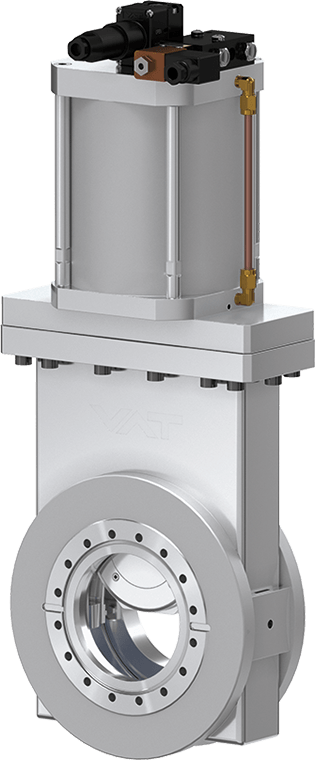

48.1 XHV All-Metal Gate Valve

View dimensions

Series

48.1 XHV All-Metal Gate Valve

Article number

48148-CE74

XHV to 2 bar (abs)

For High Temperatures (DN 16, 40, 200, 250, 320)

Technical data
Downloads

Size

DN 250 (10")

Flange

CF-F (metric threads)

Material

Stainless steel

Actuator

Pneumatic: double acting

Position Indication Signal

Visual (Mechanical), 80° C

Solenoid

Yes

Pressure Min.

XHV

Pressure Max.

2.0 bar (abs)

Conductance

12700 ls⁻¹

Differential Pressure on Plate

≤ 2 bar

Differential Pressure at opening

≤ 0.5 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

8 bar / 116 psi

Cylinder volume

10.7 l

Close open time

20 s

Max. temperature valve body

≤ 200 °C

Max. Temperature Actuator

≤ 200 °C

Max. temperature position indicator

≤ 80 °C (Option: 200 °C)

Weight

156 kg / 343.92 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Customer specified RF aperature

Antimagnetic version

Additional ports

Actuator

Different solenoid specification

Radiation resistant upto 106 Gy (bakeable max. 140 °C, max. 100h)

Manual actuator bakeable

Position indicator

Double position indicator for "open" and "close"

Increased temperature range
