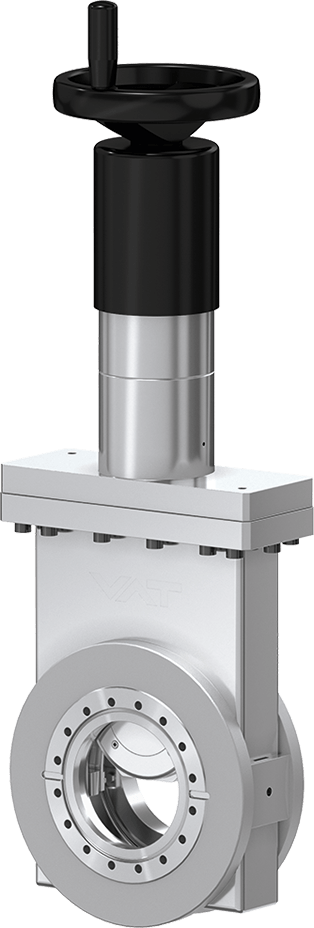

48.1 XHV All-Metal Gate Valve

  • 48146-CE01
View dimensions

Series

48.1 XHV All-Metal Gate Valve

Article number
48146-CE01
XHV to 2 bar (abs)

For High Temperatures (DN 16, 40, 200, 250, 320)

  • Technical data
  • Downloads
Size
DN 200 (8")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
XHV
Pressure Max.
2.0 bar (abs)
Conductance
6900 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 0.5 bar
Max. temperature valve body
≤ 300°C
Max. Temperature Actuator
≤ 140 °C
Weight
74.5 kg / 164.24 lbs

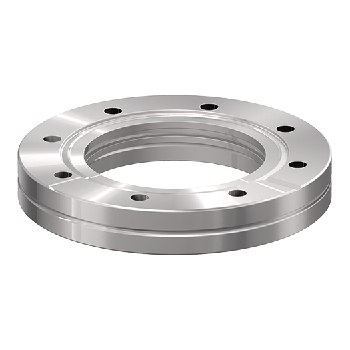

Add-Ons for Your Product
Valve
Actuator
Position indicator

48.1 XHV All-Metal Gate Valve 48146-CE01 3D CAD File

ZIP 184 KB Download

48.1 XHV All-Metal Gate Valve 48146-CE01 Product Datasheet

PDF 28 KB Download

48.1 XHV All-Metal Gate Valve 48146-CE01 Manual

PDF 738 KB Download

48.1 XHV All-Metal Gate Valve 48146-CE01 2D Dimension Drawing

PDF 219 KB Download
