Series

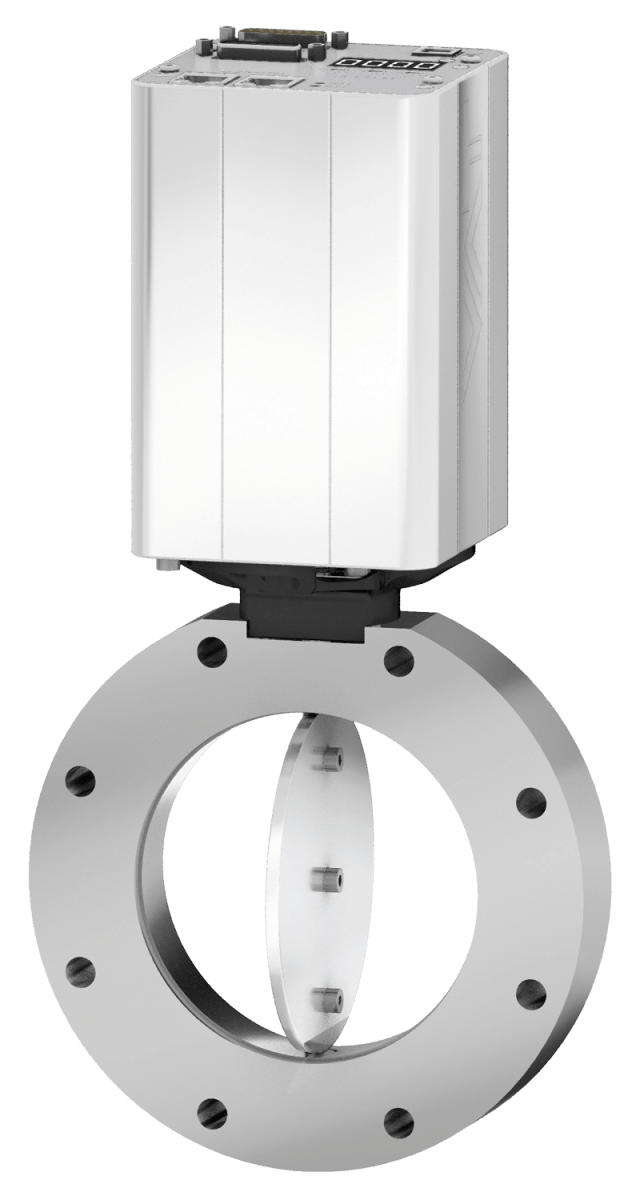

61.3 HV Butterfly Control Valve

  • 61334-KEM1-0001

Series

61.3 HV Butterfly Control Valve

Article number
61334-KEM1-0001
1 × 10-8 mbar to 1.2 bar (abs)

Fast, Precise Downstream Pressure Control

  • Technical data
  • Downloads
Size
DN 50 (2")
Actuator
Stepper motor
Material
Stainless steel
Flange
ISO-KF
Controller Configuration
Basic Version
Controller interface + sensors
Position Only
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Leak rate
1 × 10-9 ls-1
Cycles until first service
2 000 000
Max. temperature valve body
≤ 150 °C
Seal
FKM
Differential Pressure on Plate
≤ 1 bar
Typical closing or opening time
90 ms
Min. controllable conductance (N2 molecular flow)
0.3 ls-1
Max. conductance (N2 molecular flow)
150 ls-1
Weight
3.2 kg / 7.05 lbs
Add-Ons for Your Product
Valve
Actuator
Controller-Interface
Temperature Management

61.3 HV Butterfly Control Valve 61334-KEM1-0001 3D CAD File

ZIP 3 MB Download

61.3 HV Butterfly Control Valve 61334-KEM1-0001 2D Dimension Drawing

PDF 1 MB Download

61.3 HV Butterfly Control Valve 61334-KEM1-0001 Product Datasheet

PDF 111 KB Download
