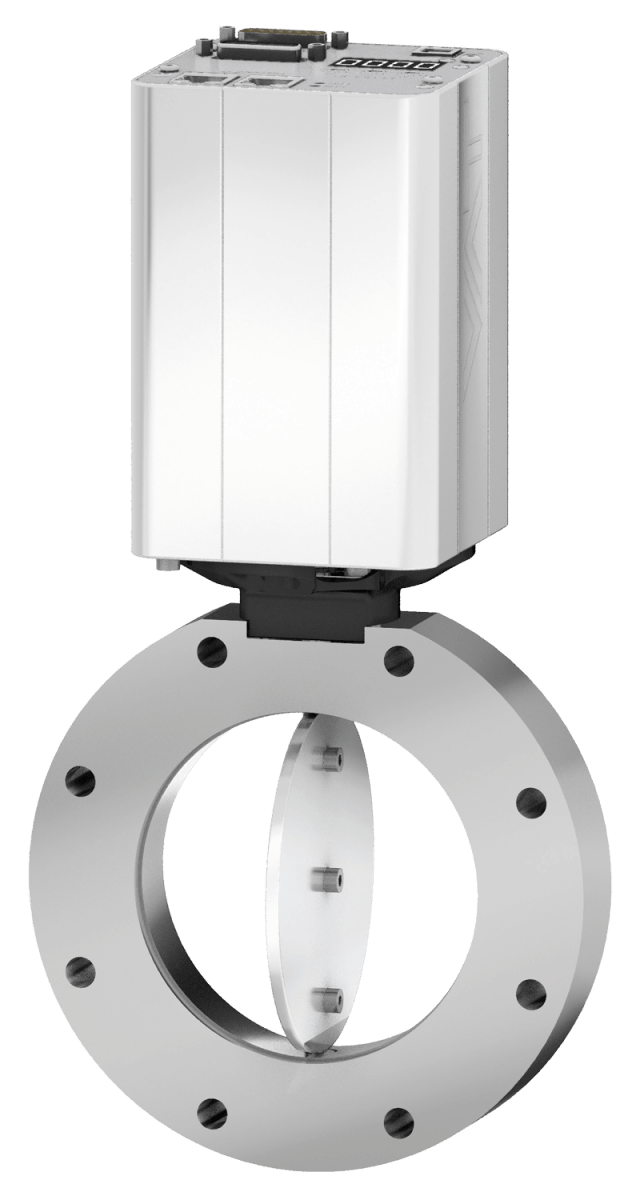

HV Butterfly Control Valve

Size

DN 40 (1 ½")

Actuator

Stepper motor

Material

Stainless steel

Flange

ISO-KF

Controller Configuration

SPS and PFO

Controller interface + sensors

Logic (A/D) / 2 sensors

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

1.2 bar (abs)

Leak rate

1 × 10^-⁹ ls^-1

Cycles until first service

2 000 000

Max. temperature valve body

≤ 150 °C

Seal

FKM

Differential Pressure on Plate

≤ 1 bar

Typical closing or opening time

90 ms

Min. controllable conductance (N2 molecular flow)

0.25 ls^-1

Max. conductance (N2 molecular flow)

80 ls^-1

Weight

2.8 kg / 6.17 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Alternative materials

Actuator

Output for control of isolation valve

Ultra fast version

Controller-Interface

RS232

RS485

Logic

DeviceNet

Profibus

Ethernet

CC-Link

EtherCAT

Power DIO

Sensor Power Supply

Power Failure Option

Master Slave Option

Temperature Management

Heater with insulation jacket
