24.5 Inline Valve

  • 24534-KE12
View dimensions

Series

24.5 Inline Valve

Article number
24534-KE12
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 50 (2")
Flange
ISO-KF
Material
Stainless steel
Actuator
Pneumatic: single acting with opening spring (NO)
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
1 × 10-5 mbar
Conductance
80 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.05 l
Close open time
0.7 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Weight
1.13 kg / 2.49 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

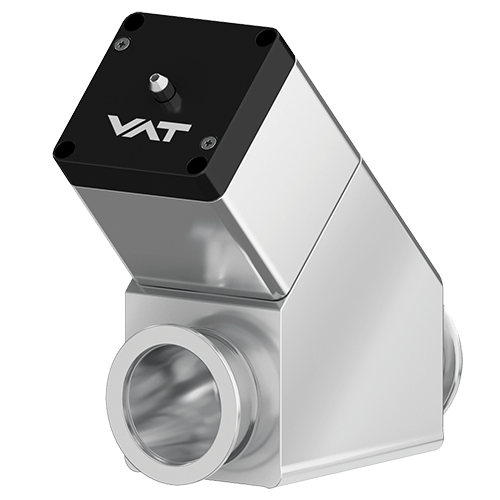

24.5 Inline Valve 24534-KE12 3D CAD File

ZIP 159 KB Download

24.5 Inline Valve 24534-KE12 Product Datasheet

PDF 142 KB Download

24.5 Inline Valve 24534-KE12 Manual

PDF 1 MB Download

24.5 Inline Valve 24534-KE12 2D Dimension Drawing

PDF 164 KB Download
