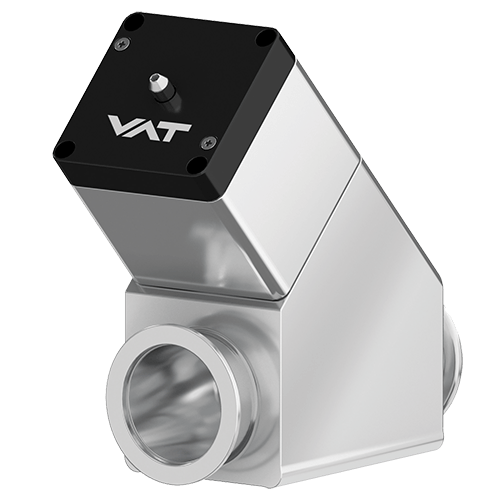

24.5 Inline Valve

  • 24528-KA22
View dimensions

Series

24.5 Inline Valve

Article number
24528-KA22
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 25 (1")
Flange
ISO-KF
Material
Aluminum
Actuator
Pneumatic: single acting with opening spring (NO)
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
5.0 bar (abs)
Conductance
14 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.01 l
Close open time
0.20 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature position indicator
≤ 80 °C
Weight
0.6 kg / 1.32 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

24.5 Inline Valve 24528-KA22 3D CAD File

ZIP 130 KB Download

24.5 Inline Valve 24528-KA22 2D Dimension Drawing

PDF 154 KB Download

24.5 Inline Valve 24528-KA22 Product Datasheet

PDF 121 KB Download

24.5 Inline Valve 24528-KA22 Manual

PDF 1 MB Download
