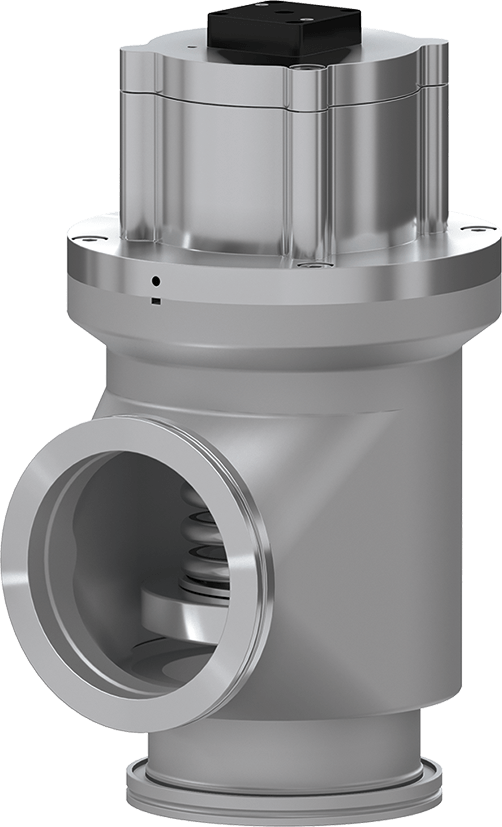

24.4 Angle Valve

  • 24440-QA41
View dimensions

Series

24.4 Angle Valve

Article number
24440-QA41
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
ISO-K
Material
Aluminum
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-7 mbar
Pressure Max.
2.0 bar (abs)
Conductance
440 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 0.3 bar
Min. compressed air pressure
4.5 bar / 65 psi
Max. compressed air pressure
12 bar / 174 psi
Cylinder volume
0.33 l
Close open time
1 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature position indicator
≤ 50 °C
Max. temperature solenoid
≤ 50 °C
Weight
7.38 kg / 16.27 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

24.4 Angle Valve 24440-QA41 3D CAD File

ZIP 443 KB Download

24.4 Angle Valve 24440-QA41 Product Datasheet

PDF 33 KB Download

24.4 Angle Valve 24440-QA41 Manual

PDF 473 KB Download

24.4 Angle Valve 24440-QA41 2D Dimension Drawing

PDF 299 KB Download
