Series

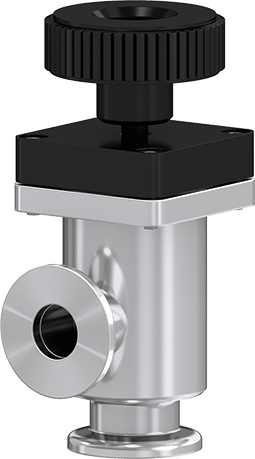

24.4 Angle Valve

  • 24436-QA01
View dimensions

Series

24.4 Angle Valve

Article number
24436-QA01
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
ISO-K
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
4.0 bar (abs)
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Conductance
160 ls⁻¹
Min. compressed air pressure
5 bar / 73 psi
Max. compressed air pressure
7 bar / 102 psi
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 120 °C
Weight
3 kg / 6.61 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

24.4 Angle Valve 24436-QA01 2D Dimension Drawing

PDF 156 KB Download

24.4 Angle Valve 24436-QA01 Product Datasheet

PDF 19 KB Download

24.4 Angle Valve 24436-QA01 3D CAD File

ZIP 140 KB Download

24.4 Angle Valve 24436-QA01 Manual

PDF 211 KB Download
