Series

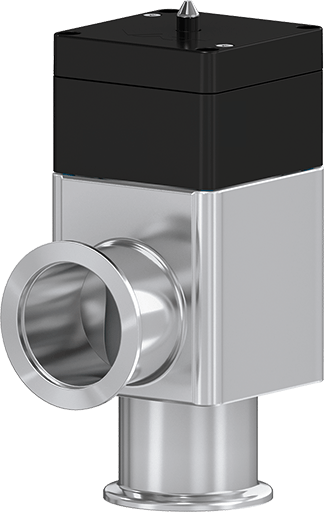

24.4 Angle Valve

  • 24432-KA22
View dimensions

Series

24.4 Angle Valve

Article number
24432-KA22
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
ISO-KF
Material
Aluminum
Actuator
Pneumatic: single acting with opening spring (NO)
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
5.0 bar (abs)
Conductance
45 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.04 l
Close open time
0.6 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature position indicator
≤ 80 °C
Weight
1.1 kg / 2.43 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

24.4 Angle Valve 24432-KA22 3D CAD File

ZIP 159 KB Download

24.4 Angle Valve 24432-KA22 2D Dimension Drawing

PDF 153 KB Download

24.4 Angle Valve 24432-KA22 Product Datasheet

PDF 120 KB Download

24.4 Angle Valve 24432-KA22 Manual

PDF 1 MB Download
