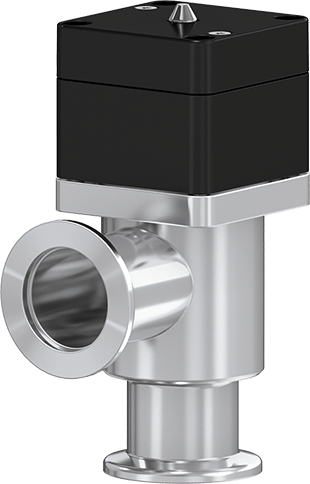

24.4 Angle Valve

  • 24428-KE31
View dimensions

Series

24.4 Angle Valve

Article number
24428-KE31
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 25 (1")
Flange
ISO-KF
Material
Stainless steel
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
No
Solenoid
Yes
Pressure Min.
1 × 10-7 mbar
Pressure Max.
5.0 bar (abs)
Conductance
14 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.011 l
Close open time
0.20 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Max. temperature solenoid
≤ 80 °C
Weight
0.6 kg / 1.32 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

24.4 Angle Valve 24428-KE31 3D CAD File

ZIP 309 KB Download

24.4 Angle Valve 24428-KE31 2D Dimension Drawing

PDF 211 KB Download

24.4 Angle Valve 24428-KE31 Product Datasheet

PDF 23 KB Download

24.4 Angle Valve 24428-KE31 Manual

PDF 1 MB Download
