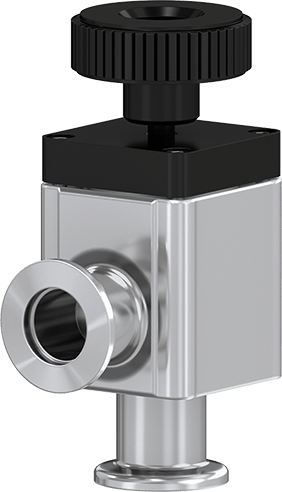

24.4 Angle Valve

  • 24424-KA01
View dimensions

Series

24.4 Angle Valve

Article number
24424-KA01
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 16 (⅝")
Flange
ISO-KF
Material
Aluminum
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
5.0 bar (abs)
Conductance
5 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Weight
0.2 kg / 0.44 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

24.4 Angle Valve 24424-KA01 3D CAD File

ZIP 244 KB Download

24.4 Angle Valve 24424-KA01 Product Datasheet

PDF 16 KB Download

24.4 Angle Valve 24424-KA01 Manual

PDF 306 KB Download

24.4 Angle Valve 24424-KA01 2D Dimension Drawing

PDF 194 KB Download
