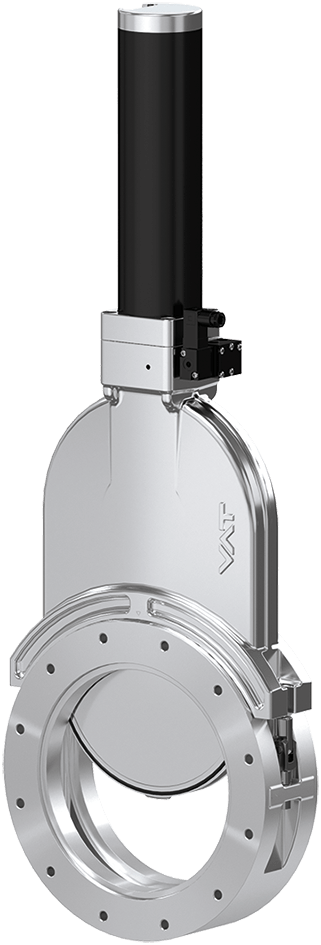

12.1 Gate Valve

  • 12148-JA14
View dimensions

Series

12.1 Gate Valve

Article number
12148-JA14
1 × 10-7 mbar to 1.6 bar (abs)

The Standard for Vacuum Isolation

  • Technical data
  • Downloads
Size
DN 250 (10")
Flange
JIS
Material
Aluminum
Actuator
Pneumatic: double acting
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
1.2 bar (abs)
Conductance
21 000 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 0.03 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
1.5 l
Close open time
5 s
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 80 °C
Weight
25 kg / 55.12 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Temperature Management

12.1 Gate Valve 12148-JA14 3D CAD File

ZIP 1 MB Download

12.1 Gate Valve 12148-JA14 2D Dimension Drawing

PDF 474 KB Download

12.1 Gate Valve 12148-JA14 Product Datasheet

PDF 96 KB Download

12.1 Gate Valve 12148-JA14 Manual

PDF 449 KB Download
