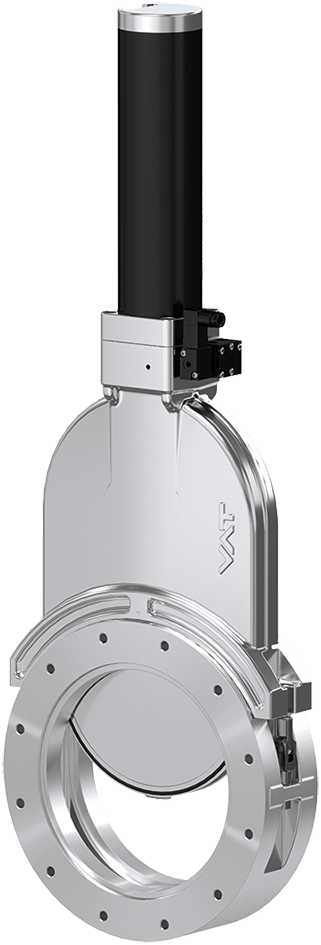

12.1 Gate Valve

  • 12144-JA34
View dimensions

Series

12.1 Gate Valve

Article number
12144-JA34
1 × 10-7 mbar to 1.6 bar (abs)

The Standard for Vacuum Isolation

  • Technical data
  • Downloads
Size
DN 160 (6")
Flange
JIS
Material
Aluminum
Actuator
Pneumatic: double acting
Position Indication Signal
No
Solenoid
Yes
Pressure Min.
1 × 10-7 mbar
Pressure Max.
1.6 bar (abs)
Conductance
6000 ls⁻¹
Differential Pressure on Plate
≤ 1.6 bar
Differential Pressure at opening
≤ 0.03 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
7 bar / 102 psi
Cylinder volume
0.5 l
Close open time
2 s
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 80 °C
Max. temperature solenoid
≤ 50 °C
Weight
9 kg / 19.84 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Temperature Management

12.1 Gate Valve 12144-JA34 2D Dimension Drawing

PDF 660 KB Download

12.1 Gate Valve 12144-JA34 Manual

PDF 538 KB Download

12.1 Gate Valve 12144-JA34 Product Datasheet

PDF 182 KB Download
