Series

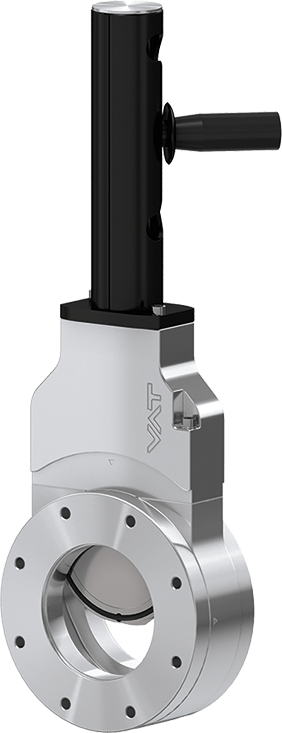

12.1 Gate Valve

  • 12138-PA03
View dimensions

Series

12.1 Gate Valve

Article number
12138-PA03
1 × 10-7 mbar to 1.6 bar (abs)

The Standard for Vacuum Isolation

  • Technical data
  • Downloads
Size
DN 80 (3")
Flange
ISO-F
Material
Aluminum
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
1.6 bar (abs)
Conductance
1000 ls⁻¹
Differential Pressure on Plate
≤ 1.6 bar
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 80 °C
Weight
3.8 kg / 8.38 lbs
Add-Ons for Your Product
Valve
Gate
Temperature Management
Actuator

12.1 Gate Valve 12138-PA03 3D CAD File

ZIP 299 KB Download

12.1 Gate Valve 12138-PA03 Product Datasheet

PDF 84 KB Download

12.1 Gate Valve 12138-PA03 Manual

PDF 2 MB Download

12.1 Gate Valve 12138-PA03 2D Dimension Drawing

PDF 265 KB Download
